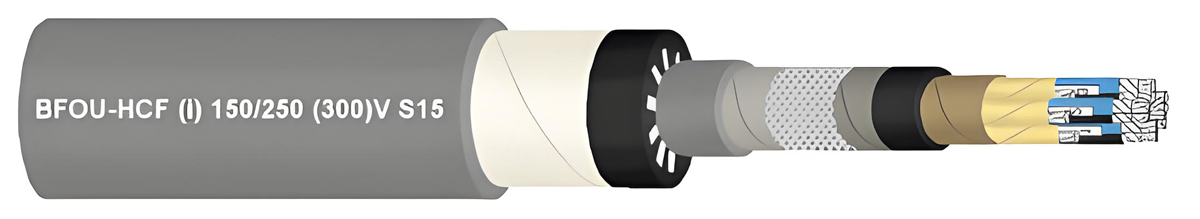

S109 (Formerly S15) BFOU-HCF(i) 250 V NEK606 Offshore Marine cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100℃ hydrocarbon fire.
Please feel free to contact us if you have any questions.
Send Email
Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.
Insulation : Mica tape + Halogen free EPR compound or Mica tape + XLPE.
Twinning : Colour coded cores twisted together.
Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Bedding : Halogen free compound.
Armour : Tinned copper wire braid.
Outer Sheath1 : Halogen free thermosetting compound, SHF2.
HC-fire protection : Extruded thermoplastic fire protection compound.
Taping : Lapped glass fibre tape.
Outer Sheath2 : Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe).
Please feel free to contact us if you have any questions.
Send EmailS15 BFOU-HCF(i) 250 V Specifications
| Construction No. of elements×No. of cores in element×Cross section | Nominal Insulation Thickness | Nominal Diameter Over Bedding | Nominal Diameter Over Sheath1 | Nominal Overall Diameter | Nominal Weight |
| (mm²) | mm | mm | mm | mm | kg/km |
| 1×2×1.5 | 0.7 | 9 | 13.1 | 39.5 | 1880 |
| 2×2×1.5 | 0.7 | 13 | 16.8 | 44.5 | 2450 |
| 4×2×1.5 | 0.7 | 15 | 20.7 | 47.5 | 2830 |
| 8×2×1.5 | 0.7 | 21 | 26.4 | 54 | 3690 |
| 12×2×1.5 | 0.7 | 25 | 31.2 | 63 | 5200 |
