Coaxial cables are a type of electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. RG6 Armoured Coaxial Cables are durable, easy to install and suitabled for installation on board of ships and other indoor marine environments.
Please feel free to contact us if you have any questions.
Send Email

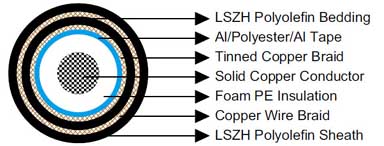

Conductors : 18AWG solid bare copper.
Insulation : Foam PE.
Shielding1 : Al/Polyester/Al tape.
Shielding2 : Tinned copper braid.
Bedding : Low smoke and halogen-free polyolefin, coloured black.
Armour : Tinned Copper wire braid.
Outer Sheath : Low smoke and halogen-free polyolefin.
Please feel free to contact us if you have any questions.
Send EmailRG6 Armoured Coaxial Cable Specifications
| Nominal Inner Conductor Diameter mm | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 1 | 1.8 | 1.2 | 11.2 | 208 |
Please feel free to contact us if you have any questions.
Send EmailOur vision is to become an internationally renowned brand in the field of cables; customer satisfaction, employee promotion, and corporate development are our service tenets; high standards, globalization, and building an international brand are our business philosophy.
Henan Huadong Cable Co., Ltd. was founded in 1999 which is a joint-stock national high-tech enterprise integrating scientific research, industry and trade. Huadong Cable is deeply integrated into the "Belt and Road" construction and exports to more than 130 countries around the world, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.
Huadong Cable focuses on technology research and development which has 60 professional personnel with senior professional titles, and has more than 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure the quality of cables.
Our main products : marine cables, power cables, overhead cables, fireproof cables, low-smoke halogen-free cables, rubber cables, high temperature resistant cables, instrument and control cables, solar cables and other products.
