ABS offshore marine approved RG11 Armoured Coaxial Cables have been designed with the rugged offshore shipping environments in mind. These ship approved coaxial cables are manufactured generally to MIL-C-17 & IEC60092-3 standards.
Please feel free to contact us if you have any questions.
Send Email

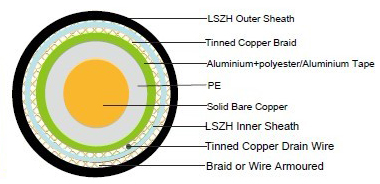

Conductors: 14AWG solid bare copper.
Insulation: Low density PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: Low smoke and halogen-free polyolefin, coloured black.
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.)
Please feel free to contact us if you have any questions.
Send EmailRG11 Armoured Coaxial Cable Specifications
| Cable Code | Nominal Inner Conductor Diameter | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm | mm | mm | mm | kg/km | |
| RG11 CWB | 1.6 | 2.7 | 1.7 | 15.2 | 349 |
| RG11 SWB | 1.6 | 2.7 | 1.7 | 15.2 | 344 |
| RG11 SWA | 1.6 | 2.7 | 1.7 | 16.2 | 468 |
