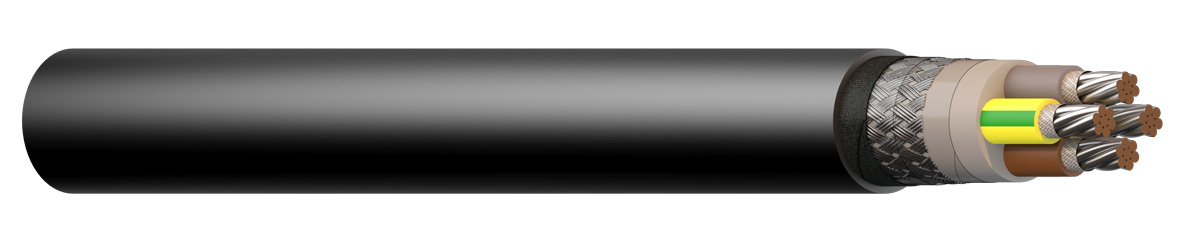

P5 or P5/P12 BFOU 0.6/1KV

NEK TS 606 is the Norwegian's marine and offshore industry technical specification (TS) covering a range of power, instrumentation and earth cables. P5 or P5/P12 BFOU 0.6/1KV Cable as one type of NEK606 offshore & marine cable,is used in fixed installations for control, instrumentation and telecommunication in both explosion and safe areas, in emergency and critical systems. The cable is also used for installations in areas exposed to mud and drilling or cleaning fluids.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

P5 or P5/P12 BFOU 0.6/1KV Description

NEK TS 606 is the Norwegian’s marine and offshore industry technical specification (TS) covering a range of power, instrumentation and earth cables that are halogen free and/or MUD resistant, protecting them against the type of hydrocarbon-laden drilling liquid used in drilling operations which can have an adverse effect on the cable sheathing material. According to NEK 606, the mud resistant cables shall have a SHF Mud sheath that comply with the requirements in IEC 60092-359 for SHF2 and the below specified.

The NEK 606 cable standard technical specification has been widely adopted in Europe and internationally with BFOU and RFOU cables, and UX Earth cables in common use.

P5 or P5/P12 BFOU 0.6/1KV Cable is used in fixed installations for control, instrumentation and telecommunication in both explosion and safe areas, in emergency and critical systems. The cable is also used for installations in areas exposed to mud and drilling or cleaning fluids.

Please feel free to contact us if you have any questions.

Send Email

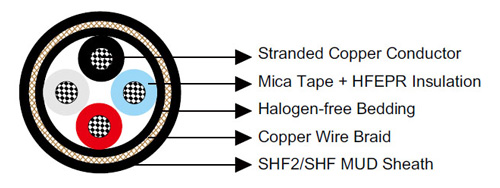

P5 or P5/P12 BFOU 0.6/1KV Construction

Conductors : Tinned annealed stranded compacted copper to IEC 60228 class 2.

Insulation : Mica tape + Halogen free EPR.

Bedding : Halogen free compound.

Armour : Tinned copper wire braid.

Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P5). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P5/P12), coloured black.

Please feel free to contact us if you have any questions.

Send Email

P5 or P5/P12 BFOU 0.6/1KV Parameter

P5 or P5/P12 BFOU 0.6/1KV Parameter
Construction No. of cores×Cross section(mm²)	Nominal Insulation Thickness mm	Nominal Sheath Thickness		Nominal Overall Diameter mm	Nominal Weight kg/km
		mm
		Inner	Outer
1×1.5	1	1.1	1.1	9.3	145
1×2.5	1	1.1	1.1	9.7	160
1×4	1	1.1	1.1	10.4	220
1×6	1	1.1	1.1	10.9	250
1×10	1	1.1	1.2	12.7	310
1×16	1	1.1	1.2	13.9	390
1×25	1.2	1.1	1.3	16.3	585
1×35	1.2	1.1	1.3	17.2	690
1×50	1.4	1.1	1.4	19	890
1×70	1.4	1.1	1.4	20.6	1110
1×95	1.6	1.1	1.5	23.1	1440
1×120	1.6	1.2	1.6	25	1735
1×150	1.8	1.2	1.7	27	2060
1×185	2	1.2	1.7	29.4	2545
1×240	2.2	1.2	1.8	32.6	3170
1×300	2.4	1.2	1.9	35.3	3910
1×400	2.4	1.4	2.1	41	5100
1×630	2.8	1.4	2.3	48.5	7660
2×1.5	1	1.1	1.2	14.2	310
2×2.5	1	1.1	1.3	15.1	360
2×4	1	1.1	1.3	16.6	470
2×6	1	1.1	1.4	17.9	555
2×10	1	1.1	1.4	19.9	705
2×16	1	1.1	1.5	22.5	985
2×25	1.2	1.2	1.6	26.4	1360
2×35	1.2	1.2	1.7	28.4	1620
2×50	1.4	1.2	1.9	32.4	2290
2×70	1.4	1.2	2.1	38	3260
2×95	1.6	1.2	2.3	41.6	3910
2×120	1.6	1.4	2.4	45.3	4710
2×150	1.8	1.4	2.6	49.7	5670
2×185	2	1.4	2.7	54.3	6840
2×240	2.2	1.6	3	61.5	8790
2×300	2.4	1.6	3.2	67.8	10630
3×1.5	1	1.1	1.3	14.8	345
3×2.5	1	1.1	1.3	16.2	445
3×4	1	1.1	1.3	17.4	530
3×6	1	1.1	1.4	18.7	635
3×10	1	1.1	1.5	21.1	830
3×16	1	1.1	1.5	23.7	1160
3×25	1.2	1.2	1.7	28.1	1640
3×35	1.2	1.2	1.8	30.2	1980
3×50	1.4	1.2	2	34.3	2750
3×70	1.4	1.2	2.2	39	3675
3×95	1.6	1.4	2.4	44.7	4955
3×120	1.6	1.4	2.5	48.3	6035
3×150	1.8	1.4	2.7	53.2	7355
3×185	2	1.6	2.9	59.5	9025
3×240	2.2	1.6	3.2	66.5	11590
3×300	2.4	1.8	3.4	72.6	13740
4×1.5	1	1.1	1.3	16.4	400
4×2.5	1	1.1	1.3	17.3	505
4×4	1	1.1	1.4	18.8	620
4×6	1	1.1	1.4	20.1	750
4×10	1	1.1	1.5	22.7	985
4×16	1	1.2	1.6	25.9	1400
4×25	1.2	1.2	1.8	30.7	1995
4×35	1.2	1.2	1.9	33.1	2440
4×50	1.4	1.4	2	38.2	3430
4×70	1.4	1.4	2.2	42.7	4600
4×95	1.6	1.6	2.4	49.4	6135
4×120	1.6	1.6	2.5	53.6	7515
4×150	1.8	1.6	2.9	59	9010
4×185	2	1.6	3.1	64.7	11000
4×240	2.2	1.8	3.4	73.1	14160
4×300	2.4	1.8	3.7	80.7	17550
5×1.5	1	1.1	1.4	17.7	510
6×1.5	1	1.1	1.4	19	545
7×1.5	1	1.1	1.4	19	590
8×1.5	1	1.1	1.5	21.8	715
9×1.5	1	1.1	1.6	23.3	720
10×1.5	1	1.1	1.6	23.6	790
12×1.5	1	1.2	1.6	24.3	880
14×1.5	1	1.2	1.7	25.5	965
16×1.5	1	1.2	1.7	26.7	1035
19×1.5	1	1.2	1.7	27.4	1185
20×1.5	1	1.2	1.8	29.5	1260
23×1.5	1	1.2	1.9	31.8	1435
24×1.5	1	1.2	2	33.2	1510
27×1.5	1	1.2	2	33.9	1615
30×1.5	1	1.2	2	34.9	1735
32×1.5	1	1.4	2	35.5	1800
33×1.5	1	1.4	2	36.7	1940
37×1.5	1	1.4	2	38	2090
44×1.5	1	1.4	2.3	42.6	2460
5×2.5	1	1.1	1.4	18.8	595
6×2.5	1	1.1	1.4	20.4	650
7×2.5	1	1.1	1.4	20.4	700
8×2.5	1	1.1	1.5	23.5	790
9×2.5	1	1.1	1.6	25.1	860
10×2.5	1	1.1	1.6	25.4	955
12×2.5	1	1.2	1.6	26.1	1045
14×2.5	1	1.2	1.7	27.3	1160
16×2.5	1	1.2	1.8	28.8	1265
19×2.5	1	1.2	1.8	29.6	1445
20×2.5	1	1.2	1.9	31.8	1545
23×2.5	1	1.4	2	34.7	1805
24×2.5	1	1.4	2	35.8	1850
27×2.5	1	1.4	2	35.4	1970
30×2.5	1	1.4	2.1	38.1	2235
33×2.5	1	1.4	2.2	39.6	2390
37×2.5	1	1.4	2.3	41.2	2610
44×2.5	1	1.4	2.4	46.2	3075

Please feel free to contact us if you have any questions.

Send Email

P5 or P5/P12 BFOU 0.6/1KV

P5 or P5/P12 BFOU 0.6/1KV cable make sure that the offshore cables are mud-resistant, halogen-free alongside being fire-resistant or flame-retardant. Besides, these cables ensure that the offshore cables have SHF2 rated sheathing which is both thermosetting halogen-free and mud-resistant.

BFOU cable code meaning

B: For halogen-free fire-resistant tape insulation around the conductor.
F: For halogen-free inner covering
O: For tinned copper wire braid for armor
U: For halogen-free thermoset compound SHF 2 or mud-resistant thermoset compound SHF Mud for outer sheath

P5 or P5/P12 BFOU 0.6/1KV standards

IEC 60092-353: For offshore power and control cables 0.6/1kV.
IEC 60092-350: For power, control, and instrumentation cables for electrical installations on ships and offshore facilities.
IEC 60331: Test for power cables against the temperature of at least 830 C.
IEC 60332-1-2: Tests for power cables under fire conditions to check resistance against vertical flame propagation for a single insulated wire.
IEC 60032-3-22: For offshore cable’s performance against high temperature.
IEC 60754-1/2: Tests for the toxic gases produced during the combustion of these cables.
IEC 61034: Tests for the smoke density of burning cables.
NEK TS 606: Mud resistant and halogen-free
