Offshore optical fibre cables are used for data transmission on Drilling ships & drilling platforms (Jack up, Semi-submersible), Production Platforms (TLP, Semi-submersible, SPAR, Fixed platforms) and FPSO/FSO. Type F5 QFCB, firee and mud resistant steel armoured optical fibre cable, outdoor cables for use in communication and emergency systems that need to be operational during fire. It is fire resistant, mud resistant and halogen-free.
Please feel free to contact us if you have any questions.
Send Email

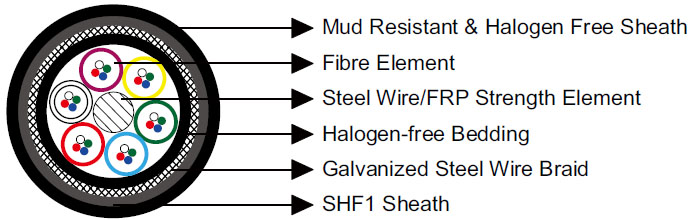

Fibre Element: Loose tube core design with fire barrier.
Central Strength Element: Steel wire or fibre reinforced plastic (FRP).
Bedding: Halogen free and flame retardant thermoplastic compound.
Armour: Galvanized steel wire braid.
Outer Sheath1: Halogen free and flame retardant, UV-stabilized, thermoplastic compound, SHF1.
Outer Sheath2: Mud resistant and halogen-free thermoplastic compound.
Please feel free to contact us if you have any questions.
Send EmailF5 QFCB Specifications
| Construction No. of tubes×No. of fibres in each tube | Number of Fillers | Nominal Loose Tube Diameter | Nominal Overall Diameter | Nominal Weight | |
| mm | mm | kg/km | |||
| 2 | 1×2 | 5 | 2.2 | 15 | 290 |
| 4 | 1×4 | 5 | 2.2 | 15 | 290 |
| 6 | 3×2 | 3 | 2.2 | 15 | 290 |
| 8 | 2×4 | 4 | 2.2 | 15 | 290 |
| 10 | 5×2 | 1 | 2.2 | 15 | 290 |
| 12 | 3×4 | 3 | 2.2 | 15 | 290 |
| 16 | 4×4 | 2 | 2.2 | 15 | 290 |
| 20 | 5×4 | 1 | 2.2 | 15 | 290 |
| 24 | 6×4 | 0 | 2.2 | 15 | 290 |
| 32 | 4×8 | 2 | 2.2 | 15 | 290 |
| 40 | 5×8 | 1 | 2.2 | 15 | 290 |
| 48 | 6×8 | 0 | 2.2 | 15 | 290 |
