The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use.
The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:
So [FA-] TTPYCY cable meaning tinned annealed stranded copper PVC insulation galvanized steel wire braid PVC outer sheath flame retardant telephone and instrumentation cable.
Please feel free to contact us if you have any questions.

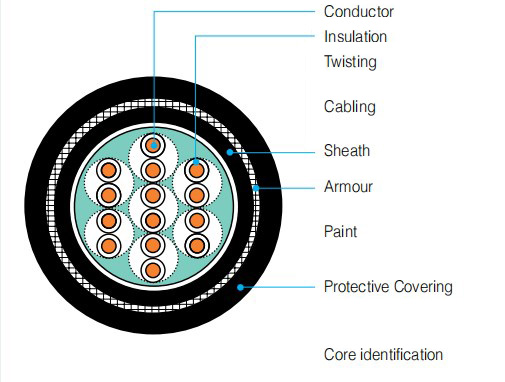

Send Email![[FA-] TTY, TTYC, TTYCY [FA-] TTPY, TTPYC, TTPYCY Construction](https://hdmarinecable.com/wp-content/uploads/2023/12/construction.jpg)
Conductor: TT / TTP -- Tinned annealed stranded copper (TTY-type) Tinned annealed stranded copper (TTPY-type), class 2 according to IEC 60228
Insulation: 60°C PVC(TTY-type)/ 85°C EPR(TTPY-type) as per JIS C 3401
Twisting: Two Insulated cores shall be twisted together to form a pair
Cabling: Twisted pairs shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Sheath: Y -- PVC as per JIS C 3401
Armour: C -- Braid of galvanized steel wire(C). - Coverage density : Min. 90%
Paint: The white paint shall be painted uniformly on the steel wire braid - In case of PVC protective covering cable, paint is dispensable.
Protective Covering: Y -- PVC as per JIS C 3410(2010) - Protective covering color : Black - Any other color may be applicable when purchaser required.
Core identification: ex) 4P : (1A, 1B), (2A, 2B), (3A, 3B), (4A, 4B) - 1T, 1Q cable shall be identified by the black number on the white insulation
Please feel free to contact us if you have any questions.
Send Email250V (FA-) TTYC,TTPYC Cable Parameter
| 250V (FA-) TTYC,TTPYC Cable Parameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| No. of pair, Triad or Quad | Conductor | Thick. of insulation | Thick. of bedding | Dia. of steel wire | (FA-) TTYC,TTPYC | ||||
| Size | Construction | O.D | Nom. | Tolerance | Cable | ||||
| overall dia | Weight | ||||||||
| mm2 | No./mm | mm | mm | mm | mm | mm | mm | kg/km | |
| 1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1 | 0.3 | 9.2 | 0.4 | 130 |
| 1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 9.9 | 0.4 | 155 |
| 1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 10.6 | 0.4 | 180 |
| 2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.2 | 0.3 | 13.6 | 0.6 | 180 |
| 4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.3 | 0.3 | 15.5 | 0.6 | 320 |
| 7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.4 | 0.3 | 18.2 | 0.7 | 440 |
| 10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.5 | 0.3 | 23 | 0.9 | 640 |
| 14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.6 | 0.3 | 24.8 | 1 | 770 |
| 19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.7 | 0.3 | 27.7 | 1.1 | 965 |
| 24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.9 | 0.4 | 33.7 | 1.3 | 1380 |
| 30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2 | 0.4 | 35.8 | 1.4 | 1590 |
| 37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.1 | 0.4 | 38.7 | 1.5 | 1860 |
| 48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.3 | 0.4 | 44.6 | 1.7 | 2380 |
250V (FA-) (FA-) TTYCY,TTPYCY Cable Parameter
| 250V (FA-) (FA-) TTYCY,TTPYCY Cable Parameter | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| No. of pair, Triad or Quad | Conductor | Thick. of insulation | Thick. of bedding | Dia. of steel wire | Thick. of covering | (FA-) TTYCY,TTPYCY | ||||
| Size | Construction | O.D | Nom. | Tolerance | Cable | |||||
| overall dia | Weight | |||||||||
| mm2 | No./mm | mm | mm | mm | mm | mm | mm | mm | kg/km | |
| 1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1 | 0.3 | 0.8 | 11 | 0.4 | 170 |
| 1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 0.9 | 11.7 | 0.5 | 205 |
| 1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 0.9 | 12.6 | 0.5 | 230 |
| 2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.2 | 0.3 | 0.9 | 15.5 | 0.7 | 230 |
| 4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.3 | 0.3 | 1 | 17.7 | 0.7 | 400 |
| 7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.4 | 0.3 | 1.1 | 20.6 | 0.8 | 545 |
| 10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.5 | 0.3 | 1.2 | 25.6 | 1 | 775 |
| 14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.6 | 0.3 | 1.2 | 27.4 | 1.1 | 920 |
| 19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.7 | 0.3 | 1.3 | 30.5 | 1.2 | 1140 |
| 24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.9 | 0.4 | 1.4 | 36.7 | 1.5 | 1610 |
| 30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2 | 0.4 | 1.5 | 39.2 | 1.6 | 1860 |
| 37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.1 | 0.4 | 1.6 | 42.3 | 1.6 | 2170 |
| 48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.3 | 0.4 | 1.7 | 48.4 | 1.8 | 2760 |
Please feel free to contact us if you have any questions.
Send EmailSome of the Feature provided by [FA-] TTY, TTYC, TTYCY [FA-] TTPY, TTPYC, TTPYCY shipboard cables are listed below:
