[FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS [FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. [FA-] TPYCS cable meaning three core EPR Insulation PVC bedding steel wire armoured common shield flame retardant cable.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

[FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS [FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS Description

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use.

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A)
FR- : Fire resistance (IEC 60331)
S : Single core for power and lighting
T : Three core for power and lighting
P : Portable or flexible
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N:PCP
Armoring:
C : Steel wire
CB : Copper alloy wire

So [FA-] TPYCS cable meaning three core EPR Insulation PVC bedding steel wire armoured common shield flame retardant cable.

Please feel free to contact us if you have any questions.

Send Email

[FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS [FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS Construction

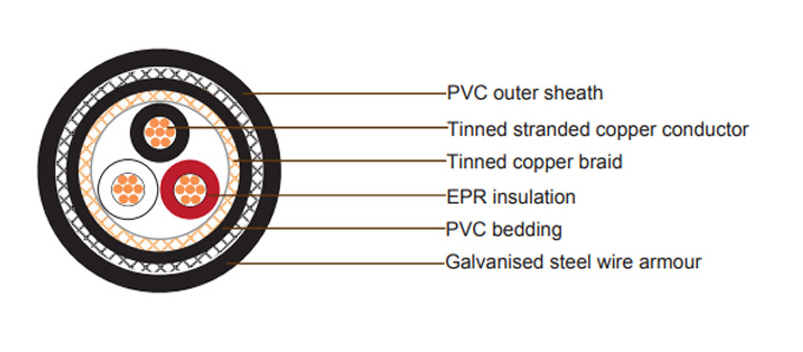

Conductor: S(D,T) --- Tinned annealed stranded copper, class 2 according to IEC 60228
