(FA-)SPYC, SPYCB (FA-)SPYCY, SPYCBY

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. (FA-)SPYC cable meaning single core EPR Insulation PVC bedding steel wire armoured flame retardant cable.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

(FA-)SPYC, SPYCB (FA-)SPYCY, SPYCBY Description

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use.

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A) FR- : Fire resistance (IEC 60331)
S : Single core for power and lighting
T : Three core for power and lighting
P : Portable or flexible
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N : PCP
Armoring:
C : Steel wire
CB : Copper alloy wire

So (FA-)SPYC cable meaning single core EPR Insulation PVC bedding steel wire armoured flame retardant cable.

Please feel free to contact us if you have any questions.

Send Email

(FA-)SPYC, SPYCB (FA-)SPYCY, SPYCBY Construction

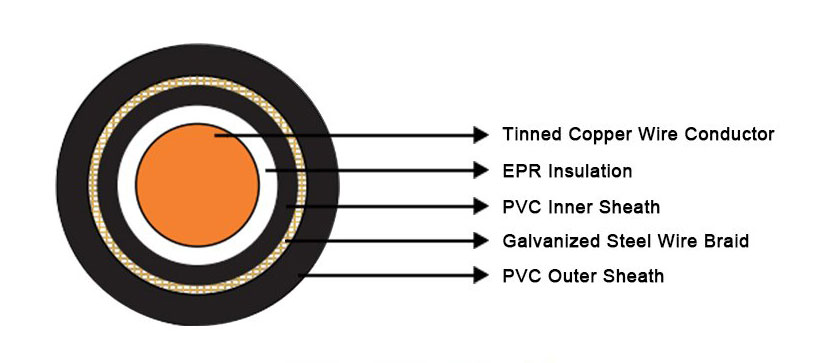

SPYCY Shipboard Power Cable Construction

CONDUCTOR： S---Tinned annealed stranded copper, class 2 according to IEC 60228

INSULATION： P---85°C EPR as per JIS C 3401

BEDDING： Y---PVC as per JIS C 3401

ARMOR： C (CB)---Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)

SHEATH： Y---PVC as per JIS C 3401

OUTER SHEATH COLOR： Black

Please feel free to contact us if you have any questions.

Send Email

(FA-)SPYC, SPYCB (FA-)SPYCY, SPYCBY Parameter

0.6/1kV (FA-)SPYC, SPYCB Cable Parameter

0.6/1kV (FA-)SPYC, SPYCB Cable
Conductor			Thick. of insulation	Thick. of bedding	Dia. over bedding	Dia. of armor	(FA-)SPYC, SPYCB
Size	Construction	O.D	Thick. of insulation	Thick. of bedding	Dia. over bedding	Dia. of armor	Nominal overall dia.	Tolerance	Cable weight (Approx.)
mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1	5.9	0.3	7.2	0.4	100
2.5	7/0.67	2.01	1	1	6.3	0.3	7.8	0.4	120
4	7/0.85	2.55	1	1	6.9	0.3	8.2	0.4	140
6	7/1.04	3.12	1	1	7.4	0.3	8.7	0.4	170
10	7/1.35	4.05	1	1.1	8.6	0.3	9.9	0.4	225
16	7/1.70	5.1	1	1.1	9.6	0.3	10.9	0.4	300
25	7/2.14	6.42	1.2	1.2	11.5	0.3	12.8	0.5	425
35	7/2.52	7.56	1.2	1.2	12.7	0.3	14	0.6	535
50	19/1.78	8.9	1.4	1.3	14.6	0.3	15.9	0.6	695
70	19/2.14	10.7	1.6	1.4	17.2	0.3	18.5	0.7	960
95	19/2.52	12.6	1.6	1.5	19.3	0.3	20.6	0.8	1250
120	37/2.03	14.2	1.6	1.5	20.9	0.3	22.2	0.9	1510
150	37/2.25	15.8	1.8	1.6	23.1	0.3	24.4	1	1830
185	37/2.52	17.6	2	1.7	25.5	0.3	26.8	1.1	2250
240	61/2.25	20.3	2.2	1.8	28.8	0.3	30.1	1.2	2910
300	61/2.52	22..7	2.4	1.9	31.8	0.4	33.6	1.3	3680

0.6/1kV (FA-)SPYCY, SPYCBY Cable Parameter

0.6/1kV (FA-)SPYCY, SPYCBY Cable
Conductor			Thick. of insulation	Thick. of bedding	Dia. over bedding	Dia. of armor	(FA-)SPYCY, SPYCBY
Size	Construction	O.D	Thick. of insulation	Thick. of bedding	Dia. over bedding	Dia. of armor	Thick.of Sheath	Nominal overall dia.	Tolerance	Cable weight (Approx.)
mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1	5.9	0.3	0.8	9	0.4	135
2.5	7/0.67	2.01	1	1	6.3	0.3	0.8	9.4	0.4	150
4	7/0.85	2.55	1	1	6.9	0.3	0.8	10	0.4	175
6	7/1.04	3.12	1	1	7.4	0.3	0.8	10.5	0.4	205
10	7/1.35	4.05	1	1.1	8.6	0.3	0.8	11.7	0.5	270
16	7/1.70	5.1	1	1.1	9.6	0.3	0.9	12.9	0.5	350
25	7/2.14	6.42	1.2	1.2	11.5	0.3	0.9	14.8	0.6	485
35	7/2.52	7.56	1.2	1.2	12.7	0.3	1	16.2	0.6	605
50	19/1.78	8.9	1.4	1.3	14.6	0.3	1	18.1	0.7	775
70	19/2.14	10.7	1.6	1.4	17.2	0.3	1.1	20.9	0.8	1060
95	19/2.52	12.6	1.6	1.5	19.3	0.3	1.1	23	0.9	1360
120	37/2.03	14.2	1.6	1.5	20.9	0.3	1.2	24.8	1	1650
150	37/2.25	15.8	1.8	1.6	23.1	0.3	1.2	27	1.1	1980
185	37/2.52	17.6	2	1.7	25.5	0.3	1.3	29.6	1.2	2420
240	61/2.25	20.3	2.2	1.8	28.8	0.3	1.4	33.1	1.3	3110
300	61/2.52	22..7	2.4	1.9	31.8	0.4	1.4	36.6	1.5	3910

Please feel free to contact us if you have any questions.

Send Email

(FA-)SPYC, SPYCB (FA-)SPYCY, SPYCBY Feature

Some of the Feature provided by (FA-)SPYC, SPYCB (FA-)SPYCY, SPYCBY shipboard cables are listed below:

Fire resistant
Flame retardant
Low smoke emission
Low halogen content
High insulation
Function efficiently in extreme conditions
Effective transmission of both data and power

Please feel free to contact us if you have any questions.

Send Email
