250V [FA-] MPYS, MPYCS, MPYCYS

The JIS C3410 standard is a Japanese standard of maritime products and vessels, as one tpye of JIS C3410 standard shipboard cable, 250V [FA-] MPYS, MPYCS, MPYCYS cable applicable to shipboard cables that are installed on ships for control and telecommunication purposes.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

[FA-] MPYS, MPYCS, MPYCYS Description

The JIS C3410 standard is a Japanese standard of maritime products and vessels, 250V [FA-] MPYS, MPYCS, MPYCYS cable applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use.

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A)
S : Single core for power and lighting
M : Multi core for control and signal(IEC 60332-3 Cat A & IEC 60331)
P : Portable or flexible
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N:PCP
Armoring:
C : Steel wire
CB : Copper alloy wire
Others
S : Common shield
-S : Individual shield
E : Earth wire

So (FA-) MPYCYS cable meaning Multi core flexible PVC bedding EPR insulation PVC sheath common shield flame retardant cable.

Please feel free to contact us if you have any questions.

Send Email

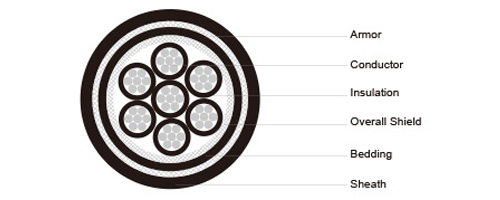

[FA-] MPYS, MPYCS, MPYCYS Construction

Conductor: M----Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation: P----85°C EPR as per JIS C 3401

Cabling: Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used

Overall shield: S----Tinned copper wire braid

Bedding: Y----PVC as per JIS C 3401

Armor: C----Galvanized steel wire braid

Sheath: Y----PVC as per JIS C 3401

Core identification: Black No. on white insulation

Outer sheath color: Black

Please feel free to contact us if you have any questions.

Send Email

[FA-] MPYS, MPYCS, MPYCYS Parameter:

250V (FA-) MPYS Cable Parameter

250V (FA-) MPYCY Cable Parameter
No. of	Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	(FA-) MPYS
cores	Size	Construction	O.D				Nom.	Tolerance	Cable
	Size	Construction	O.D				overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	kg/km
2	1	7/0.43	1.29	0.7	0.14	1.1	9.4	0.4	135
4	1	7/0.43	1.29	0.7	0.14	1.1	10.6	0.5	190
7	1	7/0.43	1.29	0.7	0.14	1.2	12.6	0.6	270
12	1	7/0.43	1.29	0.7	0.16	1.3	16.3	0.7	430
19	1	7/0.43	1.29	0.7	0.16	1.5	19.3	0.8	600
27	1	7/0.43	1.29	0.7	0.18	1.6	23	1	840
37	1	7/0.43	1.29	0.7	0.18	1.7	25.7	1.1	1070
44	1	7/0.43	1.29	0.7	0.18	1.8	28.9	1.2	1290

250V (FA-) MPYCS Cable Parameter

250V (FA-) MPYCS Cable Parameter
No. of	Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. of steel wire	(FA-) MPYCS
cores	Size	Construction	O.D					Nom.	Tolerance	Cable
	Size	Construction	O.D					overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	kg/km
2	1	7/0.43	1.29	0.7	0.14	1.1	0.3	10.7	0.4	205
4	1	7/0.43	1.29	0.7	0.14	1.1	0.3	11.9	0.5	260
7	1	7/0.43	1.29	0.7	0.14	1.2	0.3	13.9	0.6	355
12	1	7/0.43	1.29	0.7	0.16	1.3	0.3	17.6	0.7	540
19	1	7/0.43	1.29	0.7	0.16	1.5	0.3	20.6	0.8	735
27	1	7/0.43	1.29	0.7	0.18	1.6	0.3	24.3	1	995
37	1	7/0.43	1.29	0.7	0.18	1.7	0.3	27	1.1	1240
44	1	7/0.43	1.29	0.7	0.18	1.8	0.3	30.2	1.2	1480

250V (FA-) MPYCYS Cable Parameter

250V (FA-) MPYCS Cable Parameter
No. of	Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. of steel wire	Thick. of covering	(FA-) MPYCYS
cores	Size	Construction	O.D						Nom.	Tolerance	Cable
	Size	Construction	O.D						overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
2	1	7/0.43	1.29	0.7	0.14	1.1	0.3	0.9	12.7	0.5	255
4	1	7/0.43	1.29	0.7	0.14	1.1	0.3	0.9	13.9	0.6	315
7	1	7/0.43	1.29	0.7	0.14	1.2	0.3	0.9	15.9	0.6	420
12	1	7/0.43	1.29	0.7	0.16	1.3	0.3	1	19.8	0.8	625
19	1	7/0.43	1.29	0.7	0.16	1.5	0.3	1.1	23	0.9	850
27	1	7/0.43	1.29	0.7	0.18	1.6	0.3	1.2	26.9	1.1	1140
37	1	7/0.43	1.29	0.7	0.18	1.7	0.3	1.3	29.8	1.2	1410
44	1	7/0.43	1.29	0.7	0.18	1.8	0.3	1.4	33.2	1.3	1680

Please feel free to contact us if you have any questions.

Send Email

[FA-] MPYS, MPYCS, MPYCYS Feature

Some of the Feature provided by [FA-] MPYS, MPYCS, MPYCYS shipboard cables are listed below:

Fire resistant
Flame retardant
Low smoke emission
Low halogen content
High insulation
Function efficiently in extreme conditions
Effective transmission of both data and power

Please feel free to contact us if you have any questions.

Send Email
