[FA-] MPY, MPYC, MPYCY

JIS C 3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use. 250V [FA-] MPY, MPYC, MPYCY is one of a type of JIS C 3410 shipboard cables, [FA-] MPYCY cable meaning multi core tinned annealed stranded copper EPR insulation PVC bedding galvanized steel wire braid PVC sheath flame retardant cable.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

[FA-] MPY, MPYC, MPYCY Description

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use.

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A)
FR- : Fire resistance (IEC 60331)
S : Single core for power and lighting
T : Three core for power and lighting
P : Portable or flexible
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N:PCP
Armoring:
C : Steel wire
CB : Copper alloy wire

250V [FA-] MPY, MPYC, MPYCY is one of a type of JIS C 3410 shipboard cables, [FA-] MPYCY cable meaning multi core tinned annealed stranded copper EPR insulation PVC bedding galvanized steel wire braid PVC sheath flame retardant cable.

Please feel free to contact us if you have any questions.

Send Email

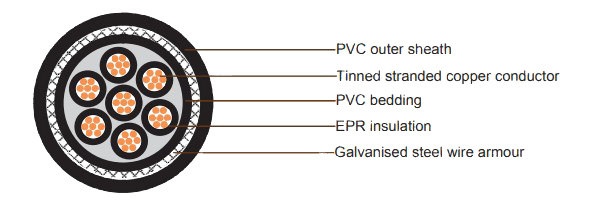

250V [FA-] MPY, MPYC, MPYCY Construction

Conductor: M --- Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation: P --- 85°C EPR as per JIS C 3410

Cabling: Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used

Bedding: Y --- PVC as per JIS C 3410

Armor: C --- Galvanized steel wire braid

Sheath: Y --- PVC as per JIS C 3410

Core identification: Black No. on white insulation /Black No. on white insulation, G/Y

Outer sheath color: Black

Please feel free to contact us if you have any questions.

Send Email

[FA-] MPY, MPYC, MPYCY Parameter

250V (FA-) MPY Cable Parameter

250V (FA-) MPY Cable Parameter
No. of cores	Conductor			Thick. of insulation	Thick. of bedding	(FA-) MPY
	Size	Construction	O.D			Nom.	Tolerance	Cable
	Size	Construction	O.D			overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2	1	7/0.43	1.29	0.7	1.1	8.7	0.4	85
4	1	7/0.43	1.29	0.7	1.1	9.9	0.4	125
7	1	7/0.43	1.29	0.7	1.2	11.9	0.5	190
12	1	7/0.43	1.29	0.7	1.3	15.5	0.7	315
19	1	7/0.43	1.29	0.7	1.4	18.3	0.8	465
27	1	7/0.43	1.29	0.7	1.6	22.1	0.9	665
37	1	7/0.43	1.29	0.7	1.7	24.8	1	870
44	1	7/0.43	1.29	0.7	1.8	28	1.2	1160
77	1	7/0.43	1.29	0.7	2.1	35.9	1.5	1790

250V (FA-) MPYC Cable Parameter

250V (FA-) MPYC Cable Parameter
No. of cores	Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	(FA-) MPYC
	Size	Construction	O.D				Nom.	Tolerance	Cable
	Size	Construction	O.D				overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	kg/km
2	1	7/0.43	1.29	0.7	1.1	0.3	10	0.4	155
4	1	7/0.43	1.29	0.7	1.1	0.3	11.2	0.4	205
7	1	7/0.43	1.29	0.7	1.2	0.3	13.2	0.5	290
12	1	7/0.43	1.29	0.7	1.3	0.3	16.8	0.7	445
19	1	7/0.43	1.29	0.7	1.4	0.3	19.6	0.8	615
27	1	7/0.43	1.29	0.7	1.6	0.3	23.4	0.9	840
37	1	7/0.43	1.29	0.7	1.7	0.3	26.1	1	1070
44	1	7/0.43	1.29	0.7	1.8	0.3	29.3	1.2	1290
77	1	7/0.43	1.29	0.7	2.1	0.4	37.7	1.5	2180

250V (FA-) MPYCY Cable Parameter

250V (FA-) MPYCY Cable Parameter
No. of	Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	Thick. of covering	(FA-) MPYCY
cores	Size	Construction	O.D					Nom.	Tolerance	Cable
	Size	Construction	O.D					overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	kg/km
2	1	7/0.43	1.29	0.7	1.1	0.3	0.9	12	0.5	205
4	1	7/0.43	1.29	0.7	1.1	0.3	0.9	13.2	0.5	260
7	1	7/0.43	1.29	0.7	1.2	0.3	0.9	15.2	0.6	350
12	1	7/0.43	1.29	0.7	1.3	0.3	1	19	0.8	530
19	1	7/0.43	1.29	0.7	1.4	0.3	1.1	22	0.9	720
27	1	7/0.43	1.29	0.7	1.6	0.3	1.2	26	1	980
37	1	7/0.43	1.29	0.7	1.7	0.3	1.3	28.9	1.2	1240
44	1	7/0.43	1.29	0.7	1.8	0.3	1.3	32.1	1.3	1470
77	1	7/0.43	1.29	0.7	2.1	0.4	1.5	41.1	1.6	2470

Please feel free to contact us if you have any questions.

Send Email

[FA-] MPY, MPYC, MPYCY Feature

Some of the Feature provided by [FA-] MPY, MPYC, MPYCY shipboard cables are listed below:

Fire resistant
Flame retardant
Low smoke emission
Low halogen content
High insulation
Function efficiently in extreme conditions
Effective transmission of both data and power

Please feel free to contact us if you have any questions.
