[FA-] DPY, TPY, FPY, 5PY, 6PY [FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC [FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use. (FA-)TPYC cable meaning three core EPR Insulation PVC bedding steel wire armoured flame retardant cable.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

[FA-] DPY, TPY, FPY, 5PY, 6PY [FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC [FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY Description

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A)
FR- : Fire resistance (IEC 60331)
S : Single core for power and lighting
T : Three core for power and lighting
P : Portable or flexible
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N:PCP
Armoring:
C : Steel wire
CB : Copper alloy wire

So (FA-)TPYC cable meaning three core EPR Insulation PVC bedding steel wire armoured flame retardant cable.

Please feel free to contact us if you have any questions.

Send Email

[FA-] DPY, TPY, FPY, 5PY, 6PY [FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC [FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY Construcrion

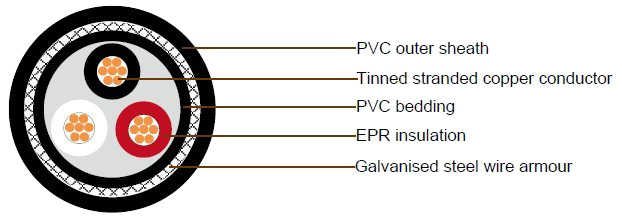

Conductor： D(T,F,5,6,10) Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation： P 85°C EPR as per JIS C 3410

Cabling： Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used

Bedding： Y PVC as per JIS C 3410

Armor： C Galvanized steel wire braid

Sheath： Y PVC as per JIS C 3410

Core Identification： 2C Black, White -
3C / 2C+E Black, White, Red/ Black, White, G/Y
4C / 3C+E Black, White, Red, Green /Black, White, Red, G/Y
5C and over Black No. on white insulation /Black No. on white insulation, G/Y

Outer Sheath Color： Black

Please feel free to contact us if you have any questions.

Send Email

[FA-] DPY, TPY, FPY, 5PY, 6PY [FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC [FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY Parameter

0.6/1KV (FA-) DPY Parameter

0.6/1KV (FA-) DPY
Conductor			Thick. of insulation	Thick. of bedding	(FA-) DPY
Size	Construction	O.D			Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.1	10.4	0.5	120
2.5	7/0.67	2.01	1	1.2	11.5	0.5	155
4	7/0.85	2.55	1	1.2	12.6	0.6	200
6	7/1.04	3.12	1	1.3	13.9	0.6	255
10	7/1.35	4.05	1	1.3	15.8	0.7	360
16	7/1.70	5.1	1	1.4	18.1	0.8	515
25	7/2.14	6.42	1.2	1.5	21.7	0.9	770
35	7/2.52	7.56	1.2	1.6	24.2	1	1010
50	19/1.78	8.9	1.4	1.8	28.1	1.2	1360
70	19/2.14	10.7	1.6	2	33.3	1.4	1930
95	19/2.52	12.6	1.6	2.1	37.3	1.6	2550
120	37/2.03	14.2	1.6	2.3	40.9	1.6	3150
150	37/2.25	15.8	1.8	2.4	45	1.7	3840
185	37/2.52	17.6	2	2.6	50	1.9	4780

0.6/1KV (FA-) DPYC Parameter

0.6/1KV (FA-) DPYC
Conductor			Thick. ofinsulation	Thick. of bedding	Dia. of steel wire	(FA-) DPYC
Size	Construction	O.D	Thick. ofinsulation	Thick. of bedding	Dia. of steel wire	Nominal overall dia.	Tolerance	Cable weight(Approx.)
mm²	No./mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.1	0.3	11.7	0.5	205
2.5	7/0.67	2.01	1	1.2	0.3	12.8	0.5	250
4	7/0.85	2.55	1	1.2	0.3	13.9	0.6	300
6	7/1.04	3.12	1	1.3	0.3	15.2	0.6	370
10	7/1.35	4.05	1	1.3	0.3	17.1	0.7	490
16	7/1.70	5.1	1	1.4	0.3	19.4	0.8	660
25	7/2.14	6.42	1.2	1.5	0.3	23	0.9	945
35	7/2.52	7.56	1.2	1.6	0.3	25.5	1	1200
50	19/1.78	8.9	1.4	1.8	0.3	29.4	1.2	1580
70	19/2.14	10.7	1.6	2	0.4	35.1	1.4	2300
95	19/2.52	12.6	1.6	2.1	0.4	39.1	1.6	2960
120	37/2.03	14.2	1.6	2.3	0.4	42.7	1.6	3600
150	37/2.25	15.8	1.8	2.4	0.4	46.8	1.7	4330
185	37/2.52	17.6	2	2.6	0.4	51.8	1.9	5330

0.6/1KV (FA-) DPYCY Parameter

0.6/1KV (FA-) DPYCY
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	(FA-) DPYCY
Size	Construction	O.D				Thick.of covering	Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.1	0.3	0.9	13.7	0.5	260
2.5	7/0.67	2.01	1	1.2	0.3	0.9	14.8	0.6	310
4	7/0.85	2.55	1	1.2	0.3	0.9	15.9	0.6	365
6	7/1.04	3.12	1	1.3	0.3	1	17.4	0.7	445
10	7/1.35	4.05	1	1.3	0.3	1	19.3	0.8	575
16	7/1.70	5.1	1	1.4	0.3	1.1	21.8	0.9	765
25	7/2.14	6.42	1.2	1.5	0.3	1.2	25.6	1	1080
35	7/2.52	7.56	1.2	1.6	0.3	1.2	28.1	1.1	1350
50	19/1.78	8.9	1.4	1.8	0.3	1.3	32.2	1.3	1770
70	19/2.14	10.7	1.6	2	0.4	1.5	38.5	1.5	2570
95	19/2.52	12.6	1.6	2.1	0.4	1.6	42.7	1.6	3280
120	37/2.03	14.2	1.6	2.3	0.4	1.7	46.5	1.7	3970
150	37/2.25	15.8	1.8	2.4	0.4	1.8	50.8	1.8	4750
185	37/2.52	17.6	2	2.6	0.4	1.9	56	1.9	5810

0.6/1KV (FA-) TPY Parameter

0.6/1KV (FA-) TPY
Conductor			Thick. of insulation	Thick. of bedding	(FA-) TPY
Size	Construction	O.D			Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	11.2	0.5	150
2.5	7/0.67	2.01	1	1.2	12.2	0.5	195
4	7/0.85	2.55	1	1.2	13.4	0.6	255
6	7/1.04	3.12	1	1.3	14.8	0.6	335
10	7/1.35	4.05	1	1.4	17	0.7	485
16	7/1.70	5.1	1	1.5	19.5	0.8	700
25	7/2.14	6.42	1.2	1.6	23.4	1	1060
35	7/2.52	7.56	1.2	1.7	26.1	1.1	1390
50	19/1.78	8.9	1.4	1.9	30.2	1.3	1870
70	19/2.14	10.7	1.6	2.1	35.8	1.5	2660
95	19/2.52	12.6	1.6	2.2	40.1	1.6	3530
120	37/2.03	14.2	1.6	2.4	44	1.7	4370
150	37/2.25	15.8	1.8	2.5	48.4	1.8	5340
185	37/2.52	17.6	2	2.7	53.7	1.9	6640
240	61/2.25	20.25	2.2	3	60.4	2.3	8880

0.6/1KV (FA-) TPYC Parameter

0.6/1KV (FA-) TPYC
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	(FA-) TPYC
Size	Construction	O.D				Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	0.3	12.5	0.5	245
2.5	7/0.67	2.01	1	1.2	0.3	13.5	0.5	295
4	7/0.85	2.55	1	1.2	0.3	14.7	0.6	365
6	7/1.04	3.12	1	1.3	0.3	16.1	0.6	455
10	7/1.35	4.05	1	1.4	0.3	18.3	0.7	625
16	7/1.70	5.1	1	1.5	0.3	20.8	0.8	855
25	7/2.14	6.42	1.2	1.6	0.3	24.7	1	1240
35	7/2.52	7.56	1.2	1.7	0.3	27.4	1.1	1600
50	19/1.78	8.9	1.4	1.9	0.4	32	1.3	2200
70	19/2.14	10.7	1.6	2.1	0.4	37.6	1.5	3050
95	19/2.52	12.6	1.6	2.2	0.4	41.9	1.6	3980
120	37/2.03	14.2	1.6	2.4	0.4	45.8	1.7	4860
150	37/2.25	15.8	1.8	2.5	0.4	50.2	1.8	5870
185	37/2.52	17.6	2	2.7	0.4	55.5	1.9	7230
240	61/2.25	20.25	2.2	3	0.4	62.7	2.3	10100

0.6/1KV (FA-) TPYCY Parameter

0.6/1KV (FA-) TPYCY
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	Thick. of covering	(FA-) TPYCY
Size	Construction	O.D	Thick. of insulation	Thick. of bedding	Dia. of steel wire	Thick. of covering	Nomina loverall dia.	Tolerance	Cable weight (Approx.)
mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	0.3	0.9	14.5	0.6	300
2.5	7/0.67	2.01	1	1.2	0.3	0.9	15.5	0.6	355
4	7/0.85	2.55	1	1.2	0.3	1	16.9	0.7	440
6	7/1.04	3.12	1	1.3	0.3	1	18.3	0.7	535
10	7/1.35	4.05	1	1.4	0.3	1.1	20.7	0.8	725
16	7/1.70	5.1	1	1.5	0.3	1.1	23.2	0.9	970
25	7/2.14	6.42	1.2	1.6	0.3	1.2	27.3	1.1	1390
35	7/2.52	7.56	1.2	1.7	0.3	1.3	30.2	1.2	1770
50	19/1.78	8.9	1.4	1.9	0.4	1.4	35	1.4	2420
70	19/2.14	10.7	1.6	2.1	0.4	1.5	41	1.6	3350
95	19/2.52	12.6	1.6	2.2	0.4	1.6	45.5	1.7	4320
120	37/2.03	14.2	1.6	2.4	0.4	1.7	49.6	1.8	5250
150	37/2.25	15.8	1.8	2.5	0.4	1.9	54.2	1.9	6340
185	37/2.52	17.6	2	2.7	0.4	2	59.7	2	7780
240	61/2.25	20.25	2.2	3	0.4	2.2	67.2	3.4	10376

0.6/1KV (FA-) FPY Parameter

0.6/1KV (FA-) FPY
Conductor			Thick. of insulation	Thick. of bedding	(FA-) FPY
Size	Construction	O.D			Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	11.8	0.6	230
2.5	7/0.67	2.01	1	1.2	12.8	0.6	290
4	7/0.85	2.55	1	1.3	14.4	0.7	380
6	7/1.04	3.12	1	1.3	15.8	0.8	500
10	7/1.35	4.05	1	1.4	18.3	0.9	730
16	7/1.70	5.1	1	1.5	21	1.1	1050
25	7/2.14	6.42	1.2	1.7	25.7	1.3	1590
35	7/2.52	7.56	1.2	1.8	28.6	1.4	2090
50	19/1.78	8.9	1.4	2	33.5	1.7	2810
70	19/2.14	10.7	1.4	2.1	38.1	1.9	3990
95	19/2.52	12.6	1.6	2.4	44.4	2.2	5300
120	37/2.03	14.2	1.6	2.5	48.7	2.4	6560
150	37/2.25	15.8	1.8	2.7	54	2.7	8010
185	37/2.52	17.6	2	2.9	59.8	3	9960

0.6/1KV (FA-) FPYC Parameter

0.6/1KV (FA-) FPYC
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	(FA-) FPYC
Size	Construction	O.D				Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	0.3	13.4	0.7	370
2.5	7/0.67	2.01	1	1.2	0.3	14.4	0.7	440
4	7/0.85	2.55	1	1.3	0.3	16	0.8	550
6	7/1.04	3.12	1	1.3	0.3	17.4	0.9	680
10	7/1.35	4.05	1	1.4	0.3	19.9	1	940
16	7/1.70	5.1	1	1.5	0.3	22.6	1.1	1280
25	7/2.14	6.42	1.2	1.7	0.3	27.3	1.4	1860
35	7/2.52	7.56	1.2	1.8	0.3	30.2	1.5	2400
50	19/1.78	8.9	1.4	2	0.4	35.6	1.8	3300
70	19/2.14	10.7	1.4	2.1	0.4	40.2	2	4580
95	19/2.52	12.6	1.6	2.4	0.4	46.5	2.3	5970
120	37/2.03	14.2	1.6	2.5	0.4	50.8	2.5	7290
150	37/2.25	15.8	1.8	2.7	0.4	56.1	2.8	8810
185	37/2.52	17.6	2	2.9	0.4	61.9	3.1	10850

0.6/1KV (FA-) FPYCY Parameter

0.6/1KV (FA-) FPYCY
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	Thick.of covering	(FA-) FPYCY
Size	Construction	O.D					Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	0.3	0.9	15.4	0.8	450
2.5	7/0.67	2.01	1	1.2	0.3	1	16.4	0.8	530
4	7/0.85	2.55	1	1.3	0.3	1	18.1	0.9	660
6	7/1.04	3.12	1	1.3	0.3	1	19.6	1	800
10	7/1.35	4.05	1	1.4	0.3	1.1	22.2	1.1	1090
16	7/1.70	5.1	1	1.5	0.3	1.2	25.1	1.3	1460
25	7/2.14	6.42	1.2	1.7	0.3	1.3	30	1.5	2090
35	7/2.52	7.56	1.2	1.8	0.3	1.4	33.1	1.7	2660
50	19/1.78	8.9	1.4	2	0.4	1.5	38.8	1.9	3630
70	19/2.14	10.7	1.4	2.1	0.4	1.6	43.6	2.2	5030
95	19/2.52	12.6	1.6	2.4	0.4	1.8	50.2	2.5	6480
120	37/2.03	14.2	1.6	2.5	0.4	1.9	54.8	2.7	7880
150	37/2.25	15.8	1.8	2.7	0.4	2	60.4	3	9510
185	37/2.52	17.6	2	2.9	0.4	2.1	66.5	3.3	11670

0.6/1KV (FA-) 5PY Parameter

0.6/1KV (FA-) 5PY
Conductor			Thick. of insulation	Thick. of bedding	(FA-) 5PY
Size	Construction	O.D			Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	12 8	0.6	270
2.5	7/0.67	2.01	1	1.3	14.2	0.7	340
4	7/0.85	2.55	1	1.3	15.7	0.8	440
6	7/1.04	3.12	1	1.4	17.5	0.9	570
10	7/1.35	4.05	1	1.5	20.2	1	840
16	7/1.70	5.1	1	1.6	23.2	1.2	1200
25	7/2.14	6.42	1.2	1.8	28.4	1.4	1820
35	7/2.52	7.56	1.2	1.9	31.7	1.6	2390
50	19/1.78	8.9	1.4	2.1	37.1	1.9	3210
70	19/2.14	10.7	1.4	2.3	42.4	2.1	4550
95	19/2.52	12.6	1.6	2.6	49.6	2.5	6050
120	37/2.03	14.2	1.6	2.7	54.1	2.7	7480
150	37/2.25	15.8	1.8	3	60.2	3	9140
185	37/2.52	17.6	2	3.2	66.6	3.3	11360

0.6/1KV (FA-) 5PYC Parameter

0.6/1KV (FA-) 5PYC
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	(FA-) 5PYC
Size	Construction	O.D				Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	0.3	14.4	0.7	430
2.5	7/0.67	2.01	1	1.3	0.3	15.8	0.8	510
4	7/0.85	2.55	1	1.3	0.3	17.3	0.9	630
6	7/1.04	3.12	1	1.4	0.3	19.1	1	780
10	7/1.35	4.05	1	1.5	0.3	21.8	1.1	1080
16	7/1.70	5.1	1	1.6	0.3	24.8	1.2	1460
25	7/2.14	6.42	1.2	1.8	0.3	30	1.5	2130
35	7/2.52	7.56	1.2	1.9	0.4	33.8	1.7	2740
50	19/1.78	8.9	1.4	2.1	0.4	39.2	2	3770
70	19/2.14	10.7	1.4	2.3	0.4	44.5	2.2	5230
95	19/2.52	12.6	1.6	2.6	0.4	51.7	2.6	6810
120	37/2.03	14.2	1.6	2.7	0.4	56.2	2.8	8320
150	37/2.25	15.8	1.8	3	0.4	62.3	3.1	10050
185	37/2.52	17.6	2	3.2	0.4	68.7	3.4	12370

0.6/1KV (FA-) 5PYCY Parameter

0.6/1KV (FA-) 5PYCY
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	Thick.of covering	(FA-) 5PYCY
Size	Construction	O.D					Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.2	0.3	1	16.5	0.8	520
2.5	7/0.67	2.01	1	1.3	0.3	1	17.9	0.9	610
4	7/0.85	2.55	1	1.3	0.3	1	19.4	1	760
6	7/1.04	3.12	1	1.4	0.3	1.1	21.5	1.1	920
10	7/1.35	4.05	1	1.5	0.3	1.1	24.2	1.2	1250
16	7/1.70	5.1	1	1.6	0.3	1.2	27.4	1.4	1670
25	7/2.14	6.42	1.2	1.8	0.3	1.4	33	1.7	2390
35	7/2.52	7.56	1.2	1.9	0.4	1.4	36.8	1.8	3040
50	19/1.78	8.9	1.4	2.1	0.4	1.6	42.6	2.1	4140
70	19/2.14	10.7	1.4	2.3	0.4	1.7	48.1	2.4	5740
95	19/2.52	12.6	1.6	2.6	0.4	1.9	55.8	2.8	7390
120	37/2.03	14.2	1.6	2.7	0.4	2	60.5	3	8990
150	37/2.25	15.8	1.8	3	0.4	2.2	67	3.4	10850
185	37/2.52	17.6	2	3.2	0.4	2.3	73.6	3.7	13310

0.6/1KV (FA-) 6PY Parameter

0.6/1KV (FA-) 6PY
Conductor			Thick. of insulation	Thick. of bedding	(FA-) 6PY
Size	Construction	O.D			Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.3	14.1	0.7	310
2.5	7/0.67	2.01	1	1.3	15.4	0.8	390
4	7/0.85	2.55	1	1.4	17.3	0.9	510
6	7/1.04	3.12	1	1.4	19	1	650
10	7/1.35	4.05	1	1.6	22.2	1.1	960
16	7/1.70	5.1	1	1.7	25.6	1.3	1370
25	7/2.14	6.42	1.2	1.9	31.3	1.6	2080
35	7/2.52	7.56	1.2	2	34.9	1.7	2730
50	19/1.78	8.9	1.4	2.2	40.9	2	3660
70	19/2.14	10.7	1.4	2.5	47	2.4	5190
95	19/2.52	12.6	1.6	2.8	54.9	2.7	6900
120	37/2.03	14.2	1.6	2.9	59.9	3	8530
150	37/2.25	15.8	1.8	3.2	66.5	3.3	10420
185	37/2.52	17.6	2	3.5	73.9	3.7	12960

0.6/1KV (FA-) 6PYC Parameter

0.6/1KV (FA-) 6PYC
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	(FA-) 6PYC
Size	Construction	O.D				Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.3	0.3	15.7	0.8	500
2.5	7/0.67	2.01	1	1.3	0.3	17	0.9	590
4	7/0.85	2.55	1	1.4	0.3	18.9	0.9	720
6	7/1.04	3.12	1	1.4	0.3	20.6	1	890
10	7/1.35	4.05	1	1.6	0.3	23.8	1.2	1240
16	7/1.70	5.1	1	1.7	0.3	27.2	1.4	1670
25	7/2.14	6.42	1.2	1.9	0.3	32.9	1.6	2430
35	7/2.52	7.56	1.2	2	0.4	37	1.9	3130
50	19/1.78	8.9	1.4	2.2	0.4	43	2.2	4300
70	19/2.14	10.7	1.4	2.5	0.4	49.1	2.5	5970
95	19/2.52	12.6	1.6	2.8	0.4	57	2.9	7770
120	37/2.03	14.2	1.6	2.9	0.4	62	3.1	9490
150	37/2.25	15.8	1.8	3.2	0.4	68.6	3.4	11460
185	37/2.52	17.6	2	3.5	0.4	76	3.8	14110

0.6/1KV (FA-) 6PYCY Parameter

0.6/1KV (FA-) 6PYCY
Conductor			Thick. of insulation	Thick. of bedding	Dia. of steel wire	Thick.of covering	(FA-) 6PYCY
Size	Construction	O.D					Nominal overall dia.	Tolerance	Cable weight (Approx.)


mm²	No./mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1	1.3	0.3	1	17.8	0.9	600
2.5	7/0.67	2.01	1	1.3	0.3	1	19.1	1	700
4	7/0.85	2.55	1	1.4	0.3	1.1	21.3	1.1	870
6	7/1.04	3.12	1	1.4	0.3	1.1	23	1.2	1050
10	7/1.35	4.05	1	1.6	0.3	1.2	26.4	1.3	1430
16	7/1.70	5.1	1	1.7	0.3	1.3	30	1.5	1910
25	7/2.14	6.42	1.2	1.9	0.3	1.4	35.9	1.8	2730
35	7/2.52	7.56	1.2	2	0.4	1.5	40.2	2	3470
50	19/1.78	8.9	1.4	2.2	0.4	1.7	46.6	2.3	4720
70	19/2.14	10.7	1.4	2.5	0.4	1.8	53	2.7	6550
95	19/2.52	12.6	1.6	2.8	0.4	2	61.3	3.1	8430
120	37/2.03	14.2	1.6	2.9	0.4	2.2	66.7	3.3	10250
150	37/2.25	15.8	1.8	3.2	0.4	2.3	73.5	3.7	12370
185	37/2.52	17.6	2	3.5	0.4	2.5	81.4	4.1	15180

Please feel free to contact us if you have any questions.

Send Email

[FA-] DPY, TPY, FPY, 5PY, 6PY [FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC [FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY Feature

Some of the Feature provided by [FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY shipboard cables are listed below:

Fire resistant
Flame retardant
Low smoke emission
Low halogen content
High insulation
Function efficiently in extreme conditions
Effective transmission of both data and power

Please feel free to contact us if you have any questions.

Send Email

Why Huadong Cable

Our vision is to become an internationally renowned brand in the field of cables; customer satisfaction, employee promotion, and corporate development are our service tenets; high standards, globalization, and building an international brand are our business philosophy.

About HuaDong

Henan Huadong Cable Co., Ltd. was founded in 1999 which is a joint-stock national high-tech enterprise integrating scientific research, industry and trade. Huadong Cable is deeply integrated into the "Belt and Road" construction and exports to more than 130 countries around the world, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

HuaDong Technology

Huadong Cable focuses on technology research and development which has 60 professional personnel with senior professional titles, and has more than 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure the quality of cables.

Main Products

Our main products : marine cables, power cables, overhead cables, fireproof cables, low-smoke halogen-free cables, rubber cables, high temperature resistant cables, instrument and control cables, solar cables and other products.
