DPNP, TPNP, FPNP

JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use. TPNP cable is a type of JIS C3410 standard shipboard Cable. TPNP cable meaning three core tinned annealed stranded copper EPR insulation PCP sheath flame retardant cable.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

DPNP, TPNP, FPNP Description

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use.

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A)
FR- : Fire resistance (IEC 60331)
S : Single core for power and lighting
T : Three core for power and lighting
P : Portable or flexible
M : Multi core for control and signal(IEC 60332-3 Cat A & IEC 60331)
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N: PCP
Armoring:
C : Steel wire
CB : Copper alloy wire
Others
S : Common shield
-S : Individual shield
E : Earth wire

So [FA-] MPYCY cable meaning multi core tinned annealed stranded copper EPR insulation PVC bedding galvanized steel wire braid PVC sheath flame retardant cable.

Please feel free to contact us if you have any questions.

Send Email

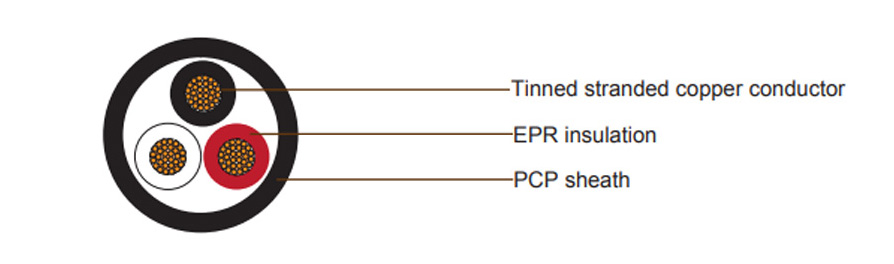

DPNP, TPNP, FPNP Construction

Conductor: D(T,F) ---- Tinned annealed stranded copper, class 5 according to IEC 60228

Insulation: P --- 85°C EPR as per JIS C 3410

Cabling: Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used

Sheath: NP --- PCP as per JIS C 3410

Core identification: 2C Black, White
3C Black, White, Red
4C Black, White, Red, Green

Outer sheath color: Black

Please feel free to contact us if you have any questions.

Send Email

DPNP, TPNP, FPNP Parameter

0.6/1 kV DPNP, TPNP, FPNP Parameter

DPNP, TPNP, FPNP Parameter
No. of Cores	Conductor			Thick. of insulation	Thick. of	Nom. overall dia.	Tolerance	Cable
	Size	Construction	O.D	Thick. of insulation	Sheath	Nom. overall dia.	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2	0.75	24/0.20	1.13	1	1.4	9.7	0.4	130
2	1	32/0.20	1.27	1	1.4	9.9	0.4	135
2	1.5	30/0.25	1.58	1	1.5	10.8	0.4	165
2	2.5	49/0.25	2.02	1	1.6	11.8	0.5	205
2	4	55/0.30	2.57	1	1.7	13.1	0.5	265
2	6	82/0.30	3.14	1	1.8	14.5	0.6	340
3	0.75	24/0.20	1.13	1	1.4	10.2	0.4	145
3	1	32/0.20	1.27	1	1.5	10.7	0.4	160
3	1.5	30/0.25	1.58	1	1.5	11.4	0.5	190
3	2.5	49/0.25	2.02	1	1.6	12.5	0.5	240
3	4	55/0.30	2.57	1	1.8	14.1	0.6	325
3	6	82/0.30	3.14	1	1.9	15.6	0.6	420
4	0.75	24/0.20	1.13	1	1.5	11.3	0.5	175
4	1	32/0.20	1.27	1	1.6	11.8	0.5	200
4	1.5	30/0.25	1.58	1	1.6	12.2	0.5	225
4	2.5	49/0.25	2.02	1	1.8	14.1	0.6	310
4	4	55/0.30	2.57	1	1.9	15.6	0.6	405
4	6	82/0.30	3.14	1	2	17.2	0.7	525

Please feel free to contact us if you have any questions.

Send Email

DPNP, TPNP, FPNP Feature

Some of the Feature provided by DPNP, TPNP, FPNP shipboard cables are listed below:

Fire resistant
Flame retardant
Low smoke emission
Low halogen content
High insulation
Function efficiently in extreme conditions
Effective transmission of both data and power

Please feel free to contact us if you have any questions.

Send Email
