250V [FA-] TTY-S, TTYC-S, TTYCY-S [FA-] TTPY-S, TTPYC-S, TTPYCY-S

Description
Construction
Parameter
Feature
Why Huadong Cable

250V [FA-] TTPY-S, TTPYC-S, TTPYCY-S Description

The JIS C3410 standard is a Japanese standard of maritime products and vessels, 250V [FA-] TTY-S, TTYC-S, TTYCY-S [FA-] TTPY-S, TTPYC-S, TTPYCY-S cable applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use.

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A)
S : Single core for power and lighting
M : Multi core for control and signal(IEC 60332-3 Cat A & IEC 60331)
P : Portable or flexible
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N:PCPArmoring:
C : Steel wire
CB : Copper alloy wire
Others
S : Common shield
-S : Individual shield
E : Earth wire

So (FA-) TTPYCY-S cable tinned annealed stranded copper PVC insulation PVC bedding tinned copper wire individual shield galvanized steel wire armor PVC outer sheath flame retardant cable.

Please feel free to contact us if you have any questions.

Send Email

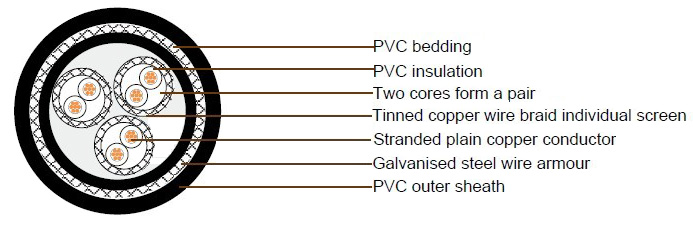

250V [FA-] TTPY-S, TTPYC-S, TTPYCY-S Construction

Conductor: TT / TTP --- Tinned annealed stranded copper (TTY-type) Tinned annealed stranded copper (TTPY-type), class 2 according to IEC 60228

Insulation: 60°C PVC(TTY-type)/ 85°C EPR(TTPY-type) as per JIS C 3401

Twisting: Two Insulated cores shall be twisted together to form a pair

Individual Shield: -S ---- Tinned copper wire braid

Cabling: Twisted pairs shall be cabled. Flame retardant & non-hygroscopic fillers may be used

Bedding: Y --- PVC as per JIS C 3401

Armor: C --- Galvanized steel wire braid

Sheath: Y --- PVC as per JIS C 3401

Core Identification: Printed pair number and Alphabet letter on the white insulation. ex) 4P : (1A, 1B), (2A, 2B), (3A, 3B), (4A, 4B) - 1T, 1Q cable shall be identified by the black number on the white insulation

Outer Sheath Color: Black

Please feel free to contact us if you have any questions.

Send Email

[FA-] TTPY-S, TTPYC-S, TTPYCY-S Parameter

250V (FA-) TTYS,TTPYS Cable Parameter

250V (FA-) TTYS,TTPYS Parameter
No. of pair, Triad or Quad	Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	(FA-) TTYS,TTPYS
	Size	Construction	O.D				Nom.	Tolerance	Cable
	Size	Construction	O.D				overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	kg/km
1	0.75	7/0.37	1.1	0.7	0.14	1.1	8.8	0.4	120
1T	0.75	7/0.37	1.1	0.7	0.14	1.1	9.3	0.4	140
1Q	0.75	7/0.37	1.1	0.7	0.14	1.1	10	0.5	160
2	0.75	7/0.37	1.1	0.7	0.16	1.2	13	0.6	200
4	0.75	7/0.37	1.1	0.7	0.16	1.3	15	0.7	300
7	0.75	7/0.37	1.1	0.7	0.16	1.4	17.7	0.8	420
10	0.75	7/0.37	1.1	0.7	0.18	1.6	22.8	1	640
14	0.75	7/0.37	1.1	0.7	0.18	1.6	24.4	1	770
19	0.75	7/0.37	1.1	0.7	0.18	1.8	27.5	1.2	970
24	0.75	7/0.37	1.1	0.7	0.2	2	33.1	1.4	1290
30	0.75	7/0.37	1.1	0.7	0.26	2.1	35.5	1.5	1620
37	0.75	7/0.37	1.1	0.7	0.26	2.2	38.4	1.6	1890
48	0.75	7/0.37	1.1	0.7	0.26	2.4	44.3	1.7	2420

250V (FA-) TTYCS,TTPYCS Cable Parameter

250V (FA-) TTYCS,TTPYCS Cable Parameter
No. of pair, Triad or Quad	Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. of steel wire	(FA-) TTYCS,TTPYCS
	Size	Construction	O.D					Nom.	Tolerance	Cable
	Size	Construction	O.D					overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	kg/km
1	0.75	7/0.37	1.1	0.7	0.14	1.1	0.3	10.1	0.4	180
1T	0.75	7/0.37	1.1	0.7	0.14	1.1	0.3	10.6	0.4	205
1Q	0.75	7/0.37	1.1	0.7	0.14	1.1	0.3	11.3	0.5	230
2	0.75	7/0.37	1.1	0.7	0.16	1.2	0.3	14.6	0.7	230
4	0.75	7/0.37	1.1	0.7	0.16	1.3	0.3	16.3	0.7	405
7	0.75	7/0.37	1.1	0.7	0.16	1.4	0.3	19	0.7	545
10	0.75	7/0.37	1.1	0.7	0.18	1.6	0.3	24.1	1	800
14	0.75	7/0.37	1.1	0.7	0.18	1.6	0.3	25.7	1	935
19	0.75	7/0.37	1.1	0.7	0.18	1.8	0.3	28.8	1.2	1160
24	0.75	7/0.37	1.1	0.7	0.2	2	0.4	34.9	1.4	1600
30	0.75	7/0.37	1.1	0.7	0.26	2.1	0.4	37.3	1.5	1950
37	0.75	7/0.37	1.1	0.7	0.26	2.2	0.4	40.2	1.6	2250
48	0.75	7/0.37	1.1	0.7	0.26	2.4	0.4	46.1	1.7	2830
聽

250V (FA-) TTYCYS,TTPYCYS Cable Parameter

250V (FA-) TTYCYS,TTPYCYS Cable Parameter
No. of pair, Triad or Quad	Conductor			Thick. of insulation	Dia. of shield wire	Thick. of bedding	Dia. of steel wire	Thick. of covering	(FA-) TTYCYS,TTPYCYS
	Size	Construction	O.D						Nom.	Tolerance	Cable
	Size	Construction	O.D						overall dia	Tolerance	Weight
	mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
1	0.75	7/0.37	1.1	0.7	0.14	1.1	0.3	0.9	12.1	0.5	230
1T	0.75	7/0.37	1.1	0.7	0.14	1.1	0.3	0.9	12.6	0.5	255
1Q	0.75	7/0.37	1.1	0.7	0.14	1.1	0.3	0.9	13.3	0.5	285
2	0.75	7/0.37	1.1	0.7	0.16	1.2	0.3	1	16.7	0.7	285
4	0.75	7/0.37	1.1	0.7	0.16	1.3	0.3	1	18.5	0.7	490
7	0.75	7/0.37	1.1	0.7	0.16	1.4	0.3	1.1	21.4	0.9	650
10	0.75	7/0.37	1.1	0.7	0.18	1.6	0.3	1.2	26.7	1.1	945
14	0.75	7/0.37	1.1	0.7	0.18	1.6	0.3	1.2	28.3	1.1	1090
19	0.75	7/0.37	1.1	0.7	0.18	1.8	0.3	1.3	31.6	1.3	1340
24	0.75	7/0.37	1.1	0.7	0.2	2	0.4	1.5	38.3	1.5	1860
30	0.75	7/0.37	1.1	0.7	0.26	2.1	0.4	1.5	40.7	1.6	2230
37	0.75	7/0.37	1.1	0.7	0.26	2.2	0.4	1.6	43.8	1.7	2570
48	0.75	7/0.37	1.1	0.7	0.26	2.4	0.4	1.8	50.1	1.8	3240

Please feel free to contact us if you have any questions.

Send Email

[FA-] TTPY-S, TTPYC-S, TTPYCY-S Feature

Some of the Feature provided by [FA-] TTPY-S, TTPYC-S, TTPYCY-S shipboard cables are listed below:

Fire resistant
Flame retardant
Low smoke emission
Low halogen content
High insulation
Function efficiently in extreme conditions
Effective transmission of both data and power

Please feel free to contact us if you have any questions.

Send Email
