0.6/1 kV SCP, SYP

JIS C 3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use. 0.6/1 kV SCP, SYP is one of a type of JIS C 3410 shipboard cables, SYP cable meaning single core tinned annealed stranded copper conductor pvc jacket cable.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

0.6/1 kV SCP, SYP Description

The JIS C3410 standard is a Japanese standard of maritime products and vessels, which is also applicable to shipboard cables that are installed on ships for control and telecommunication purposes. JIS C3410 standard ensures the premium quality of the shipboard cable being used in ships and vessels and makes sure that the shipboard cable is efficient and safe to use

The various symbols in the JIS C3410 standard explain the number of cores, construction, configuration, and use of the shipboard cable.The meanings of various symbols in JIS C3410 standard are as follows:

FA- : Flame retardant (IEC 60332-3 Cat A)
FR- : Fire resistance (IEC 60331)
S : Single core for power and lighting
T : Three core for power and lighting
P : Portable or flexible
Insulation and Bedding:
P : EP Rubber
Y : PVC
C : XLPE
N:PCP
Armoring:
C : Steel wire
CB : Copper alloy wire

0.6/1 kV SCP, SYP is one of a type of JIS C 3410 shipboard cables, SYP cable meaning single core tinned annealed stranded copper conductor pvc jacket cable.

Please feel free to contact us if you have any questions.

Send Email

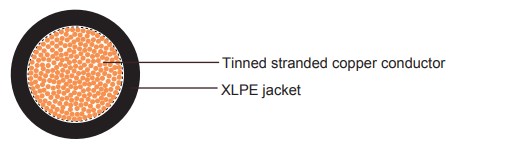

0.6/1 kV SCP, SYP Construction

Conductor: S ---- Bunched tinned annealed stranded copper, class 5 according to IEC 60228

Insulation: CP --- 85°C XLPE;
YP --- 75°C PVC as per JIS C 3410

Please feel free to contact us if you have any questions.

Send Email

0.6/1 kV SCP, SYP Parameter

0.6/1KV SCP Cable Parameter

0.6/1KV SCP Cable Parameter
Conductor			Thick. of insulation	Nom. overall dia.	Tolerance	Cable Weight
Size	Construction	O.D	Thick. of insulation	Nom. overall dia.	Tolerance	Cable Weight
mm2	No./mm	mm	mm	mm	mm	kg/km
1.5	30/0.25	1.58	0.9	3.7	0.4	26
2.5	49/0.25	2.02	1	4.3	0.4	38
4	55/0.30	2.57	1	4.8	0.4	55
6	82/0.30	3.14	1	5.3	0.4	75
10	80/0.40	4.13	1.1	6.6	0.4	125
16	7/18/0.40	5.88	1.1	8.3	0.4	190
25	7/28/0.40	7.32	1.2	10	0.4	280
35	7/39/0.40	8.67	1.4	11.8	0.5	390
50	19/21/0.40	10.3	1.4	13.4	0.5	550
70	19/19/0.50	12.2	1.6	15.7	0.6	770
95	19/25/0.50	14	1.7	17.7	0.7	1000

0.6/1KV SYP Cable Parameter

0.6/1KV SYP Cable Parameter
Conductor			Thick. of insulation	Nom. overall dia.	Tolerance	Cable Weight
Size	Construction	O.D	Thick. of insulation	Nom. overall dia.	Tolerance	Cable Weight
mm2	No./mm	mm	mm	mm	mm	kg/km
0.75	24/0.20	1.13	1.2	3.8	0.4	21
1	32/0.20	1.27	1.2	3.9	0.4	24
1.5	30/0.25	1.58	1.2	4.2	0.4	30
2.5	49/0.25	2.02	1.2	4.7	0.4	41
4	55/0.30	2.57	1.2	5.2	0.4	60
6	82/0.30	3.14	1.2	5.8	0.4	80
10	80/0.40	4.13	1.2	6.8	0.4	125
16	7/18/0.40	5.88	1.3	8.7	0.4	195

Please feel free to contact us if you have any questions.

Send Email

0.6/1 kV SCP, SYP Feature

Some of the Feature provided by 0.6/1 kV SCP, SYP shipboard cables are listed below:

Fire resistant
Flame retardant
Low smoke emission
Low halogen content
High insulation
Function efficiently in extreme conditions
Effective transmission of both data and power

Please feel free to contact us if you have any questions.

Send Email
