M2XSH Marine Cable

M2XSH Marine Cable used as fixed installation cables in various electromechanical and electronic equipments of marine vehichles, in most areas & open deck in ships.

Send Email Whatsapp

Description
Construction
Parameter
Feature
Why Huadong Cable

M2XSH Marine Cable Description

M2XSH cable is a type of marine cable that is designed for use in harsh marine and offshore environments. It is similar to the M2XH cable but typically offers enhanced performance characteristics, particularly in terms of fire resistance and safety.

Please feel free to contact us if you have any questions.

Send Email

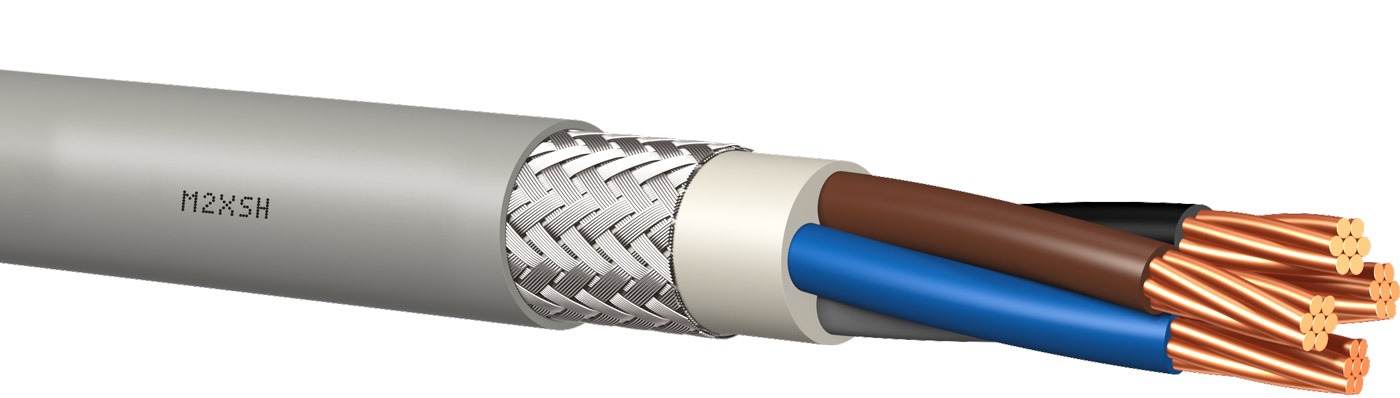

M2XSH Marine Cable Construction

CONDUCTOR : Electrolytic, stranded, annealed copper wire IEC 60228 Class 5 (Class 2 and / or tinned on request)

INSULATION : Cross linked polyethylene compound (XLPE)

INNER SHEATH : Halogen-free bedding compound

ARMOR : Galvanized steel wire braided armor (Min. 90% coverage)

OUTER SHEATH : Halogen-free, flame retardant, UV resistant, polyolefin based compound (SHF 1)

COLOR : Black or Grey

Please feel free to contact us if you have any questions.

Send Email

M2XSH Marine Cable Parameter

AWG		20
Nominal Conductor Diameter	mm	0.8
Impedance	Ω	75+/-5
Nominal Attenuation@100MHz	dB/100m	7.6
Nominal Attenuation@270MHz	dB/100m	12.5
Nominal Attenuation@540MHz	dB/100m	17.9
Nominal Attenuation@720MHz	dB/100m	20.9
Nominal Attenuation@750MHz	dB/100m	21.3
Nominal Attenuation@1000MHz	dB/100m	24.9
Capacitance	pF/m	53.5
Velocity of Propagation	%	83
Conductor DCR	Ω/km	32.8
Shield DCR	Ω/km	12.5
Inductance	μH/m	0.318
Time Delay	ns/m	4

Please feel free to contact us if you have any questions.

Send Email

M2XSH Marine Cable Feature

Enhanced Fire Resistance: M2XSH cables are usually designed to meet higher fire safety standards, making them suitable for use in areas where fire resistance is critical.
Low Smoke and Halogen-Free (LSHF): These cables emit low smoke and no halogen gases when exposed to fire, which helps to protect both people and equipment from toxic and corrosive fumes.
Robust Insulation and Sheathing: Made from materials that resist water, oil, and chemicals, ensuring durability and longevity in marine environments.
Flexibility: Designed to be flexible, which is crucial for installation and operation on vessels and offshore platforms where cables may need to bend around tight spaces.
Compliance with Standards: They typically comply with international marine and offshore standards, such as those set by the International Electrotechnical Commission (IEC) or other relevant bodies.

Please feel free to contact us if you have any questions.

Send Email
